#1846 Gas Strut 8mm Shaft Shroud Set
#1846 Gas Strut 8mm Shaft Shroud Set

#1846 Gas Strut 8mm Shaft Shroud Set

SKU #1846
Regular price
$22.84
Sale price
$17.10
+GST
Quantity must be 1 or more

2 in stock.

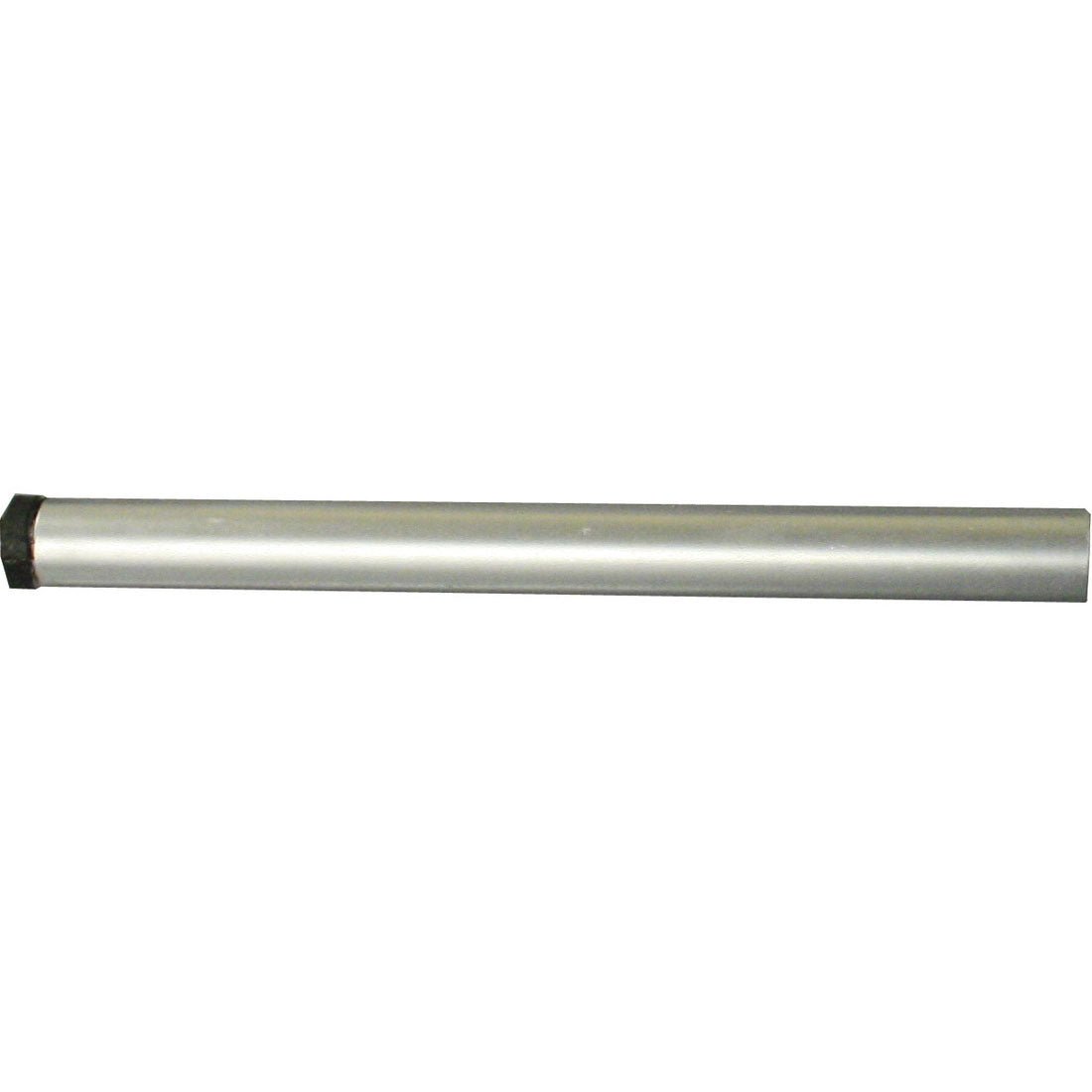

Gas Strut 8mm Shaft Shroud Set

Protects the gas strut shaft from contamination and eliminates pinch points, making it safer

Stainless steel tube

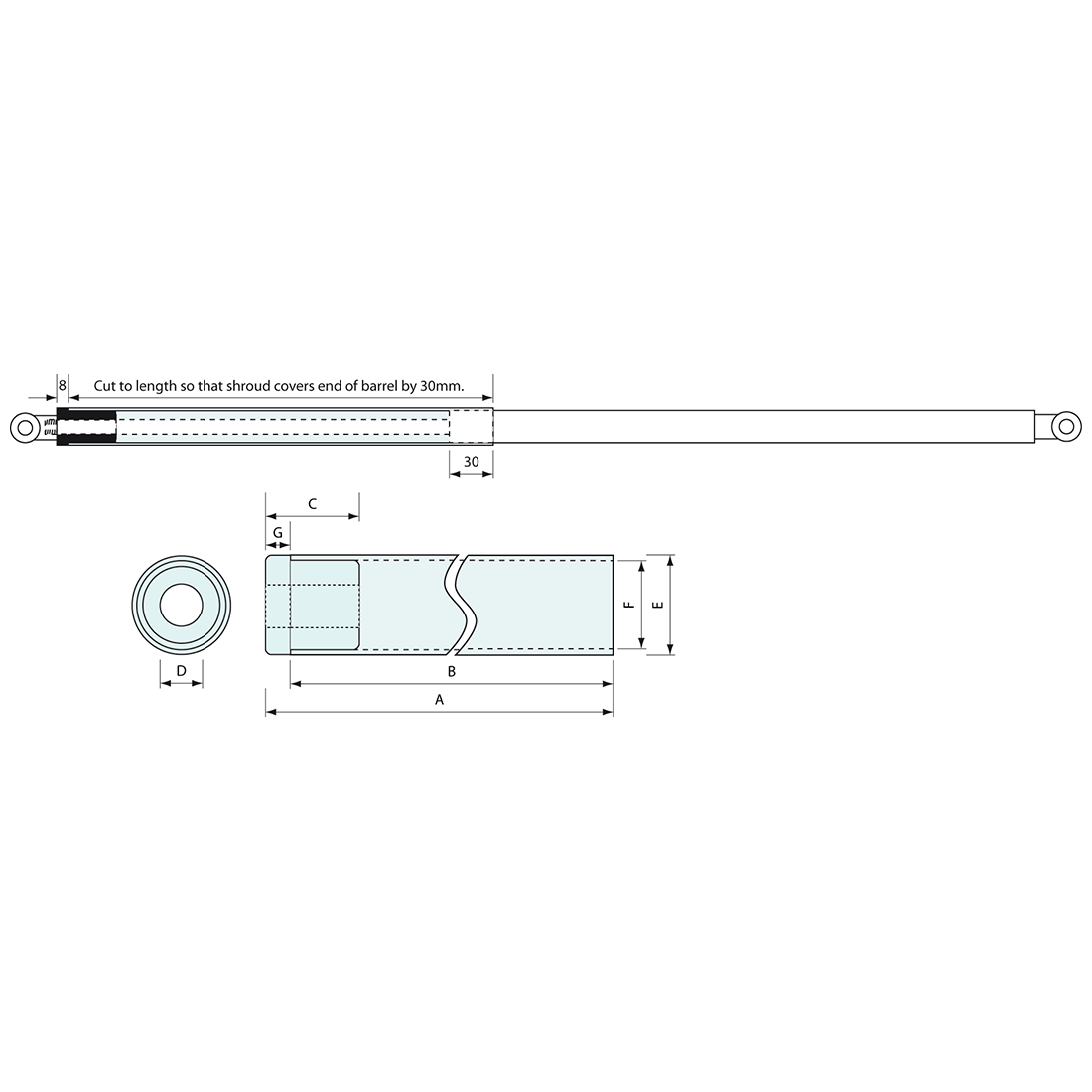

Cut the tube to suit your gas strut stroke and slide the shroud over the shaft (cut to length so that the shroud covers end of barrel by 30mm)

308mm overall length (A)

30mm overall shouldered bush length (C)

8mm inside diameter (D)

8mm shoulder thickness (G)

22.0mm overall shoulder diameter (E)

1.2mm wall thickness either side of the shoulder

Replacement bushes, see product code #1803
