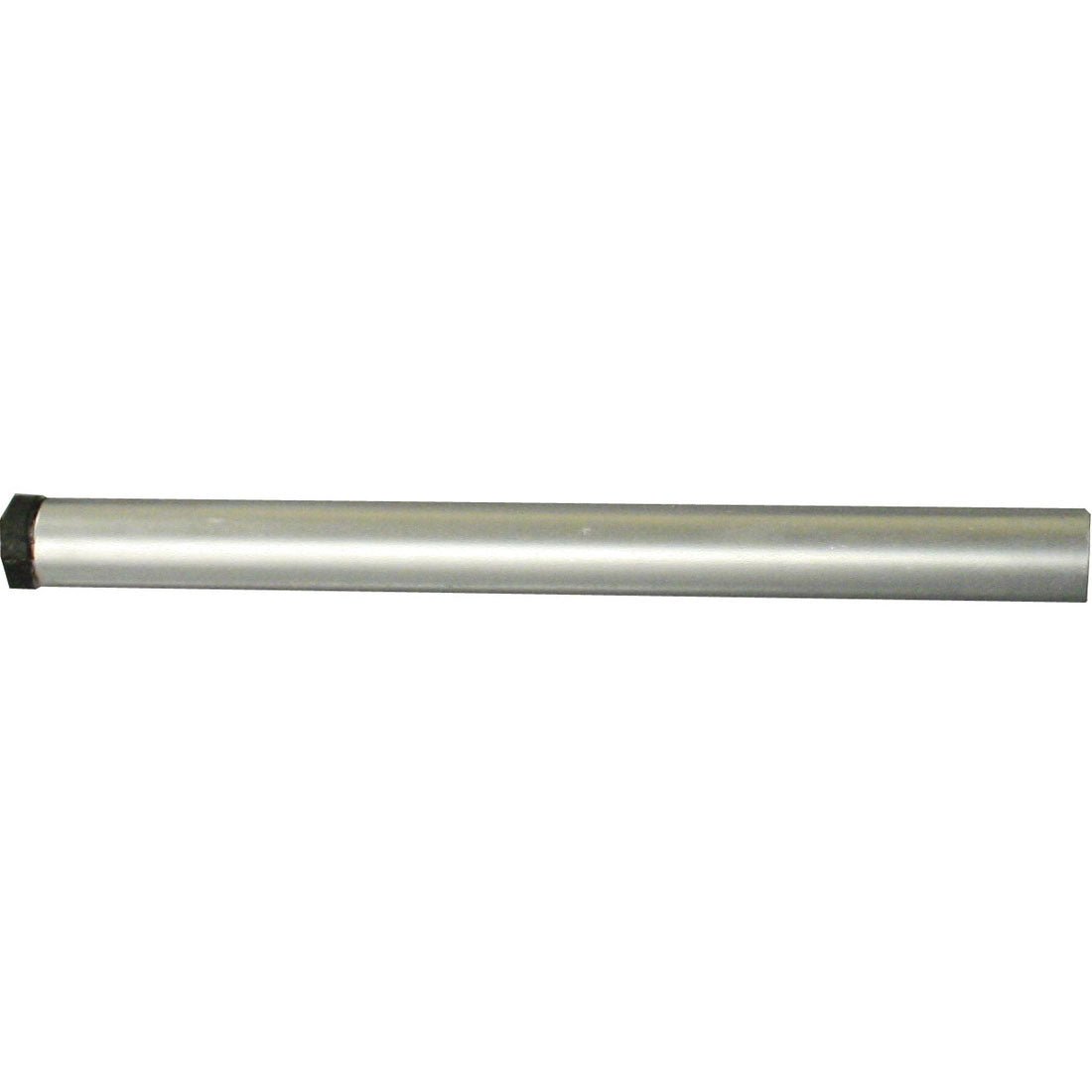

Gas Strut 10mm Shaft Shroud Set
Protects the gas strut shaft from contamination and eliminates pinch points, making it safer
Stainless steel tube

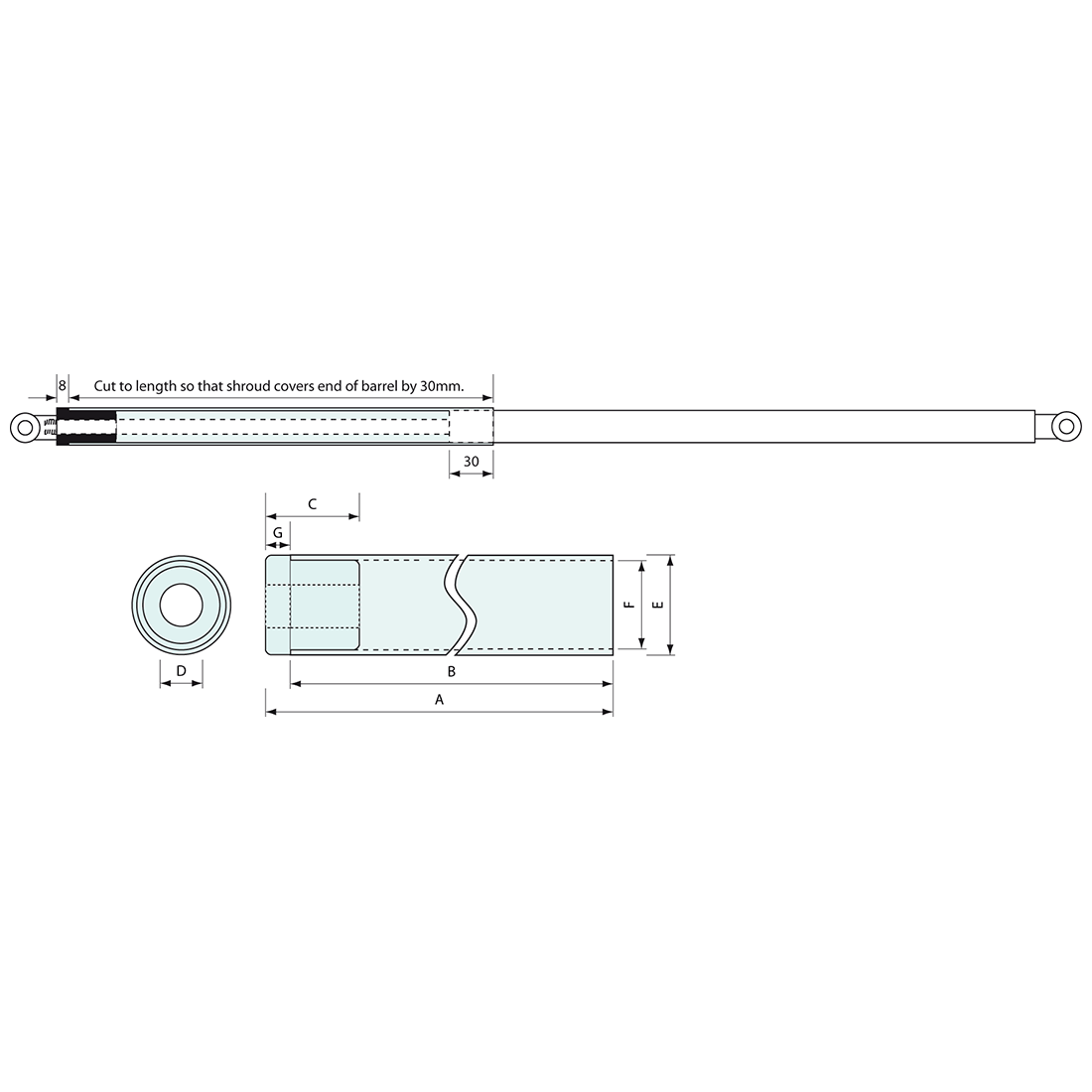

Cut the tube to suit your gas strut stroke and slide the shroud over the shaft (cut to length so that the shroud covers end of barrel by 30mm)
458mm overall length (A)
30mm overall shouldered bush length (C)
10mm inside diameter (D)
8mm shoulder thickness (G)
25.4mm overall shoulder diameter (E)
1.2mm wall thickness either side of the shoulder
Replacement bushes, see product code #1802
