#1849 Gas Strut 10mm Shaft Shroud Set 32mm

#1849 Gas Strut 10mm Shaft Shroud Set 32mm

SKU: SKU:1849

Regular price $22.60 NZD
Regular price $30.01 NZD Sale price $22.60 NZD
Sale Sold out

Low stock: 7 left

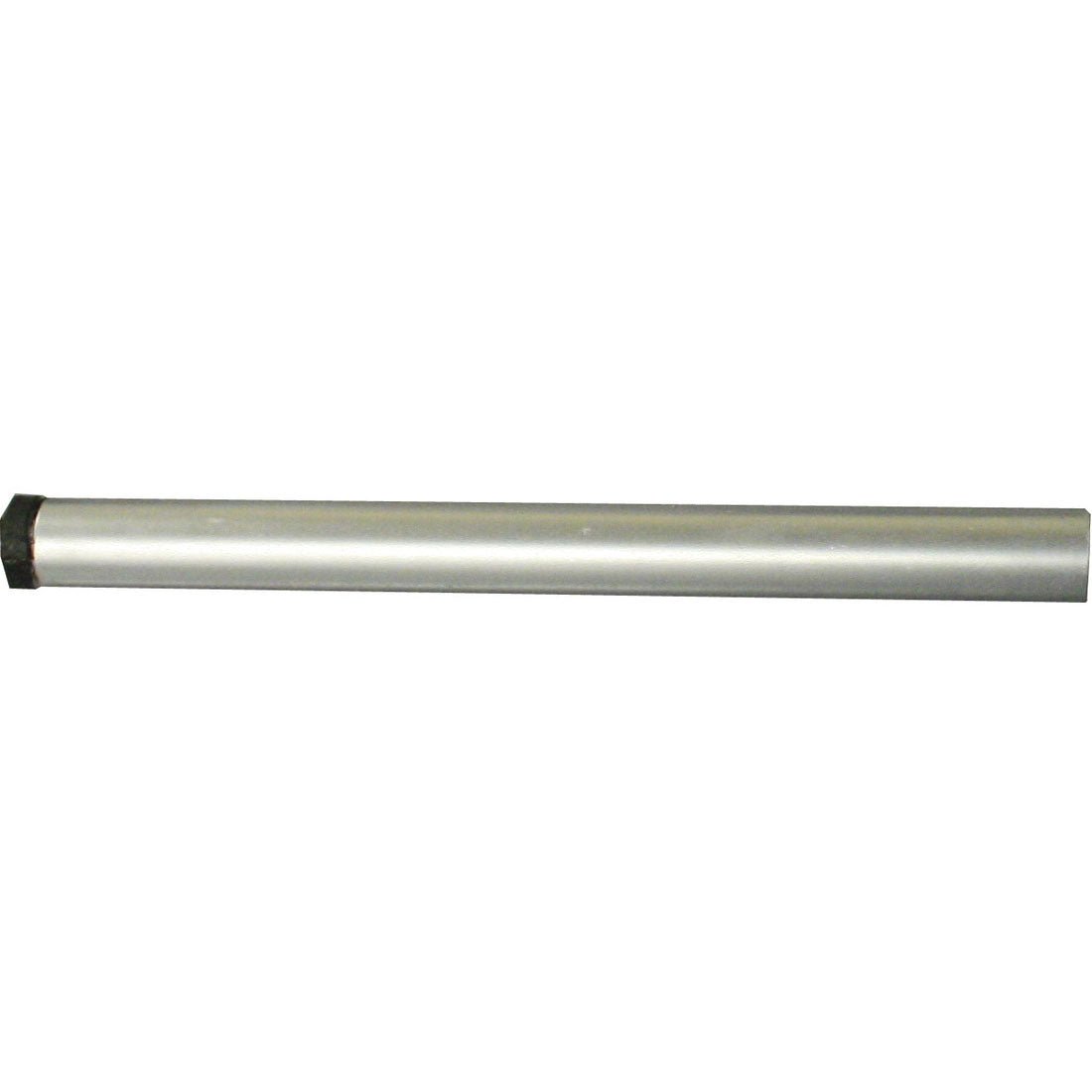

Gas Strut 10mm Shaft Shroud Set 32mm

Protects the gas strut shaft from contamination and eliminates pinch points, making it safer

Stainless steel tube

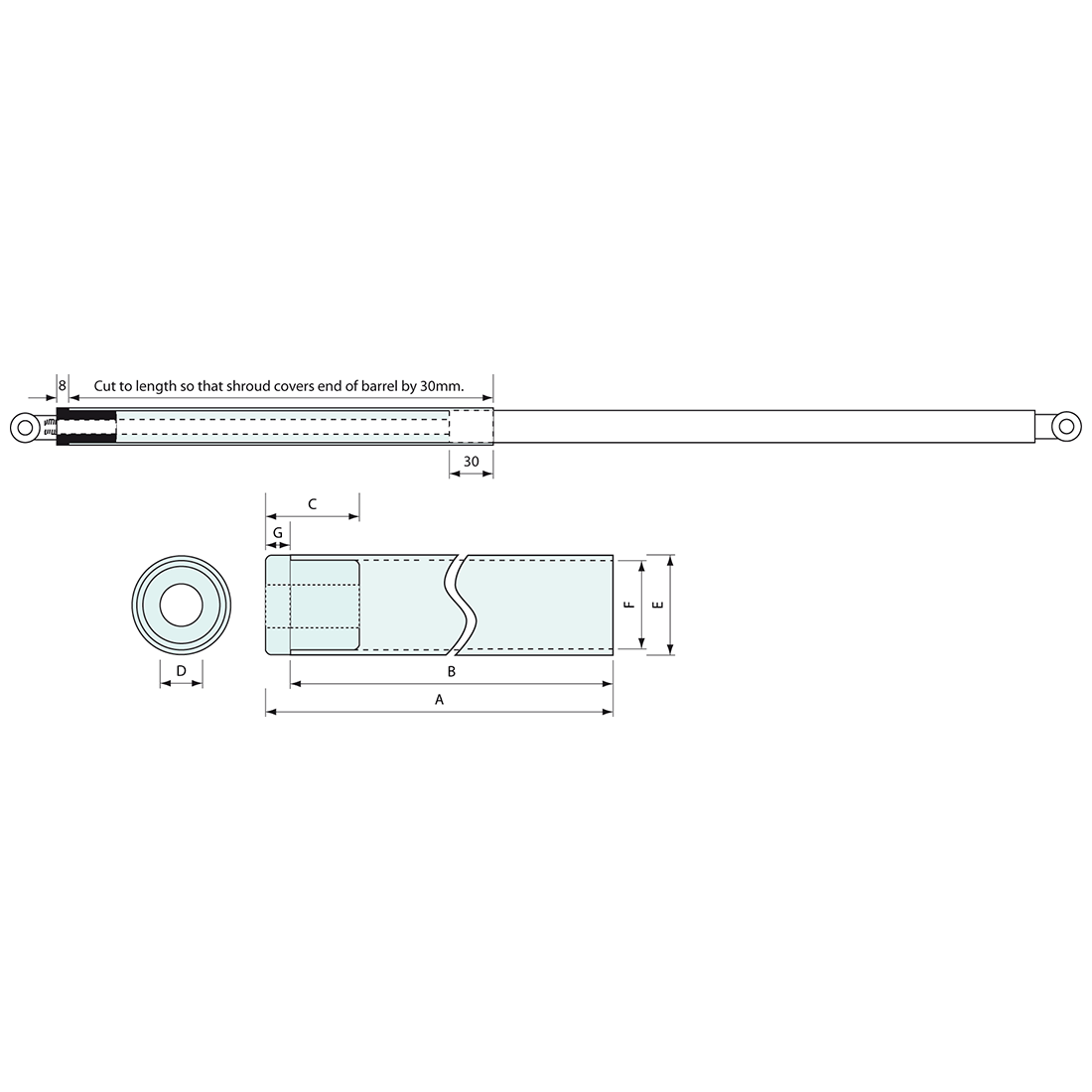

Cut the tube to suit your gas strut stroke and slide the shroud over the shaft (cut to length so that the shroud covers end of barrel by 30mm)

450mm overall length (A)

30mm overall shouldered bush length (C)

10mm inside diameter (D)

8mm shoulder thickness (G)

31.7mm overall shoulder diameter (E)

1.6mm wall thickness either side of the shouldered bush

Replacement bushes, see product code #1801
